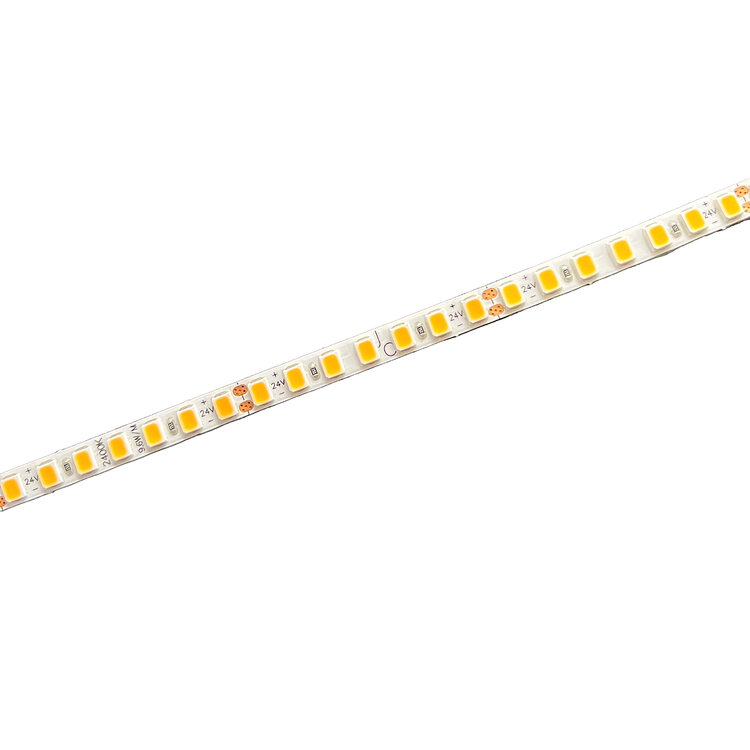

Contour HD Ultra-slim 9.6W IP54

Category
Linear LED, Shelf Lights
Description

The Contour range of products are used to provide versatile linear LED lighting. The LED strip can be used to create a multitude of different solutions both inside and out being IP54. It can highlight features such as joinery, stair treads, coving or under cabinets to create floating effects where you require a line of light rather than a point source. These fantastic flexible strips are ideal for adding balance, depth and variety to your lighting scheme.

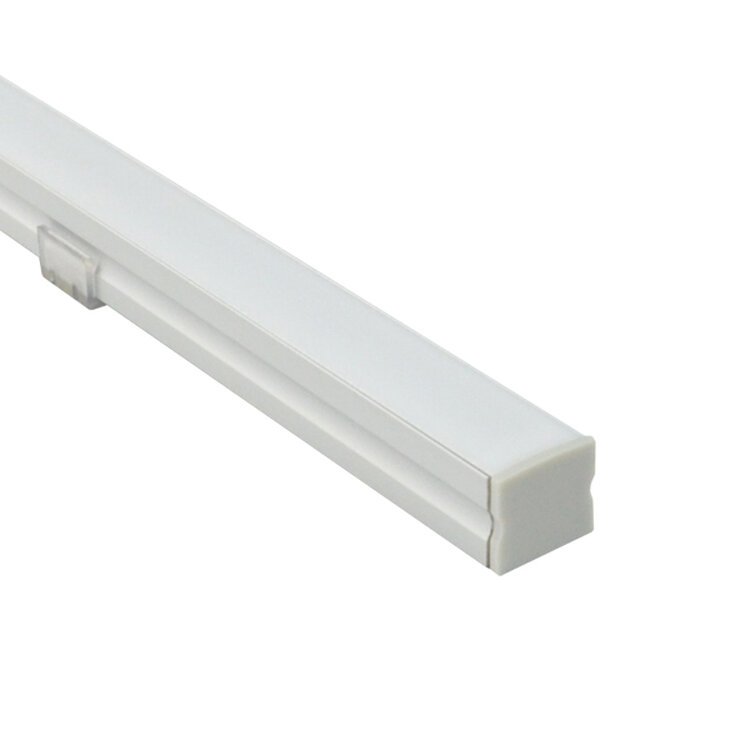

A range of profiles enables the strip to be precisely integrated and also help avoid a “dotty” effect. Contour strips can be cut every 38.46mm and are sold by the metre.

Application
A flexible solution for a multitude of applications, delivering the highest quality lighting effect.
Intelligent Design
Miniature strip with close LEDs for a continuous run of light.
Technical Specifications
Beam Beam Angle Source Engine Luminaire Power Supply CCT CRI IP Fire Rated Dimmable
Lambertian 120° 890 lm N/A 890 lm 9.6W 24V DC 2400K >95 Ra IP54 N/A DALI/Phase cut/1-10V
Lambertian 120° 980 lm N/A 980 lm 9.6W 24V DC 2700K >95 Ra IP54 N/A DALI/Phase cut/1-10V

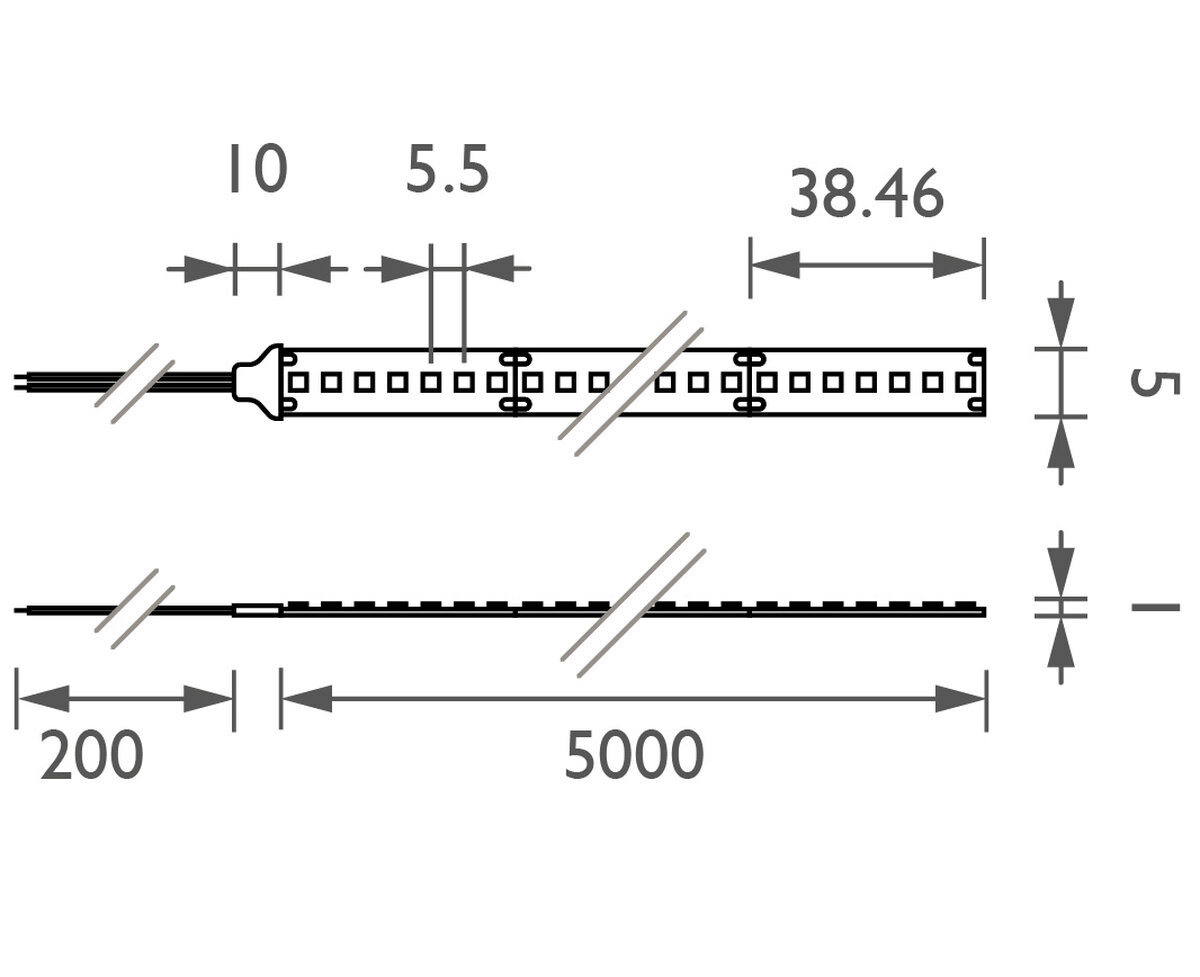

Drawings & Dimensions
Contour HD Ultra-slim 9.6W IP54 dimension image
Finishes
Accessories
Technical Download
Select your luminaire
ExpandCollapse Filters
Colour Temperature
All
2400K
2700K
Beam Angle
All
120°
Beam
All
Lambertian
2400K
120°
Lambertian
Contour HD Ultra-slim LED Strip 2400K IP54
2700K
120°
Lambertian
Contour HD Ultra-slim LED Strip 2700K IP54
