Application
A miniature solution where a focussed spot of light is needed to illuminate a sculpture or horticultural feature from a wall fixing.
Kew 25 Surface
Category
Spotlights, Surface Mounted
Finishes
Description

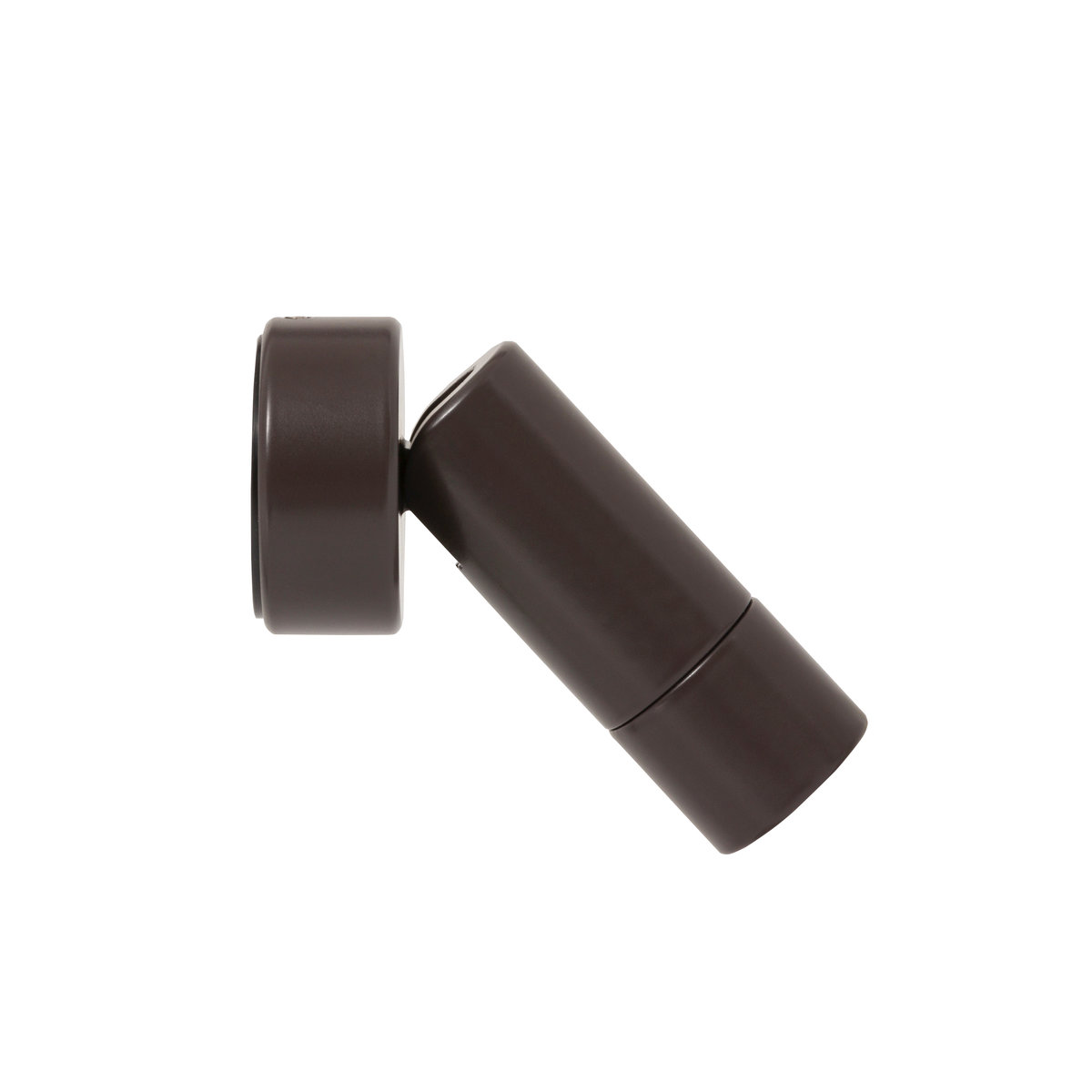

The Kew 25 Surface is a miniature surface mounted IP66 spotlight, ideal for pinpointing landscape ornaments from above or wall grazing for use both inside and out. Our unique, patented wall mounting system allows for quick, tool-free installation on site. The luminaire mounts onto the wall bracket and is self-locking at 15° intervals, preventing the need for further fixing. A discreet, optional tamper proofing feature is available if required for commercial projects. The Kew Surface is IP66 Rated – see FAQs for more details on IP Values.
Tested by Lighting Industry Association (LIA) Laboratory
Intelligent Design
REPOSITIONABLE AND TILTABLE TO ADAPT TO NATURAL CHANGES IN GROWTH THROUGHOUT THE SEASONS.
Technical Specifications
| Beam | Beam Angle | Source | Engine | Luminaire | Power | Supply | CCT | CRI | IP | Fire Rated | Dimmable |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Narrow | 11° | 139 | N/A | 94 | 1.5W | 500 | 2700K | 98 Ra | IP66 | N/A | DALI/Phase cut/1-10V |
| Medium | 22° | 139 | N/A | 93 | 1.5W | 500 | 2700K | 98 Ra | IP66 | N/A | DALI/Phase cut/1-10V |
| Wide | 30° | 139 | N/A | 85 | 1.5W | 500 | 2700K | 98 Ra | IP66 | N/A | DALI/Phase cut/1-10V |

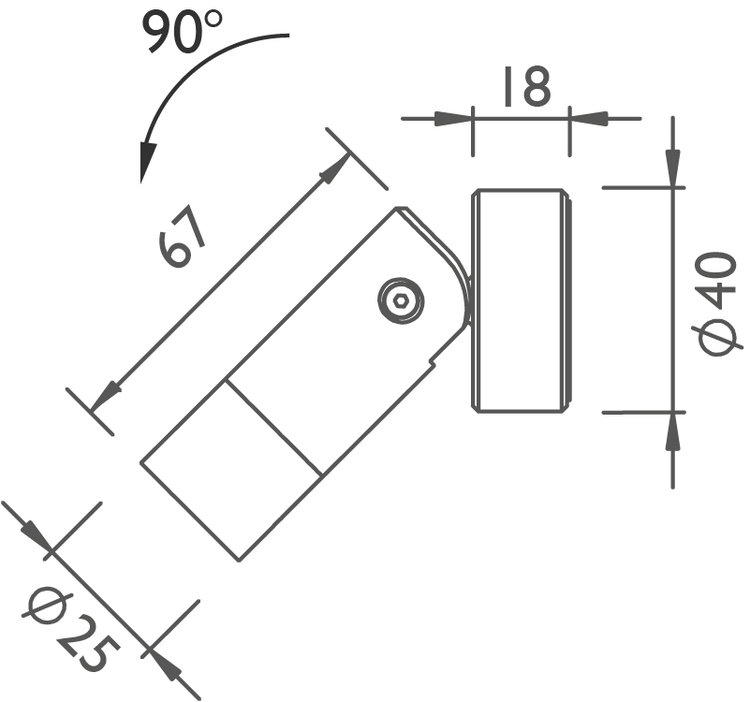

Drawings & Dimensions
Finishes
Black RAL 9005
Bronze RAL 8019
Accessories
Technical Download
Select your luminaire
ExpandCollapse Filters
Beam Angle
All
11°
22°
30°
Beam
All
Narrow
Medium
Wide
Finish
All
Black RAL 9005
Bronze RAL 8019
Kew 25 Surface Bronze Wide
+ Show- Hide Product Image
30°
Wide
Bronze RAL 8019
Kew 25 Surface Bronze Wide
Kew 25 Surface Black Wide
+ Show- Hide Product Image
30°
Wide
Black RAL 9005
Kew 25 Surface Black Wide
Kew 25 Surface Bronze Medium
+ Show- Hide Product Image
22°
Medium
Bronze RAL 8019
Kew 25 Surface Bronze Medium
Kew 25 Surface Black Medium
+ Show- Hide Product Image
22°
Medium
Black RAL 9005
Kew 25 Surface Black Medium
Kew 25 Surface Bronze Narrow
+ Show- Hide Product Image
11°
Narrow
Bronze RAL 8019
Kew 25 Surface Bronze Narrow
Kew 25 Surface Black Narrow
+ Show- Hide Product Image
11°
Narrow
Black RAL 9005
Kew 25 Surface Black Narrow
