Application
Use to create a focussed spot of downward light to a single feature.
Lucca 30 Downlight
Category
Downlights, Shelf Lights
Finishes
Description
The Lucca 30 Downlight is an energy efficient LED micro downlight. It is ideal for creating stunning downlight effects within shelving, niches and window reveals.It is IP67 rated so ideal for use both inside and out. If using inside, the warranty increases to 5 years. Fittings come with 1m of cable as standard. Custom cable lengths are available.
Tested by Lighting Industry Association (LIA) Laboratory
Intelligent Design
A unique glass mounting method ensures optimum light output and minimal trim.
Technical Specifications
| Beam | Beam Angle | Source | Engine | Luminaire | Power | Supply | CCT | CRI | IP | Fire Rated | Dimmable |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Narrow | 11° | 137 | N/A | 92 | 2.3 | 700 | 2700K | 92 Ra | IP65 + IP67 | N/A | DALI/Phase cut/1-10V |
| Medium | 20° | 181 | N/A | 103 | 2.1 | 700 | 2700K | 98 Ra | IP65 + IP67 | N/A | DALI/Phase cut/1-10V |
| Wide | 36° | 181 | N/A | 111 | 2.1 | 700 | 2700K | 98 Ra | IP65 + IP67 | N/A | DALI/Phase cut/1-10V |

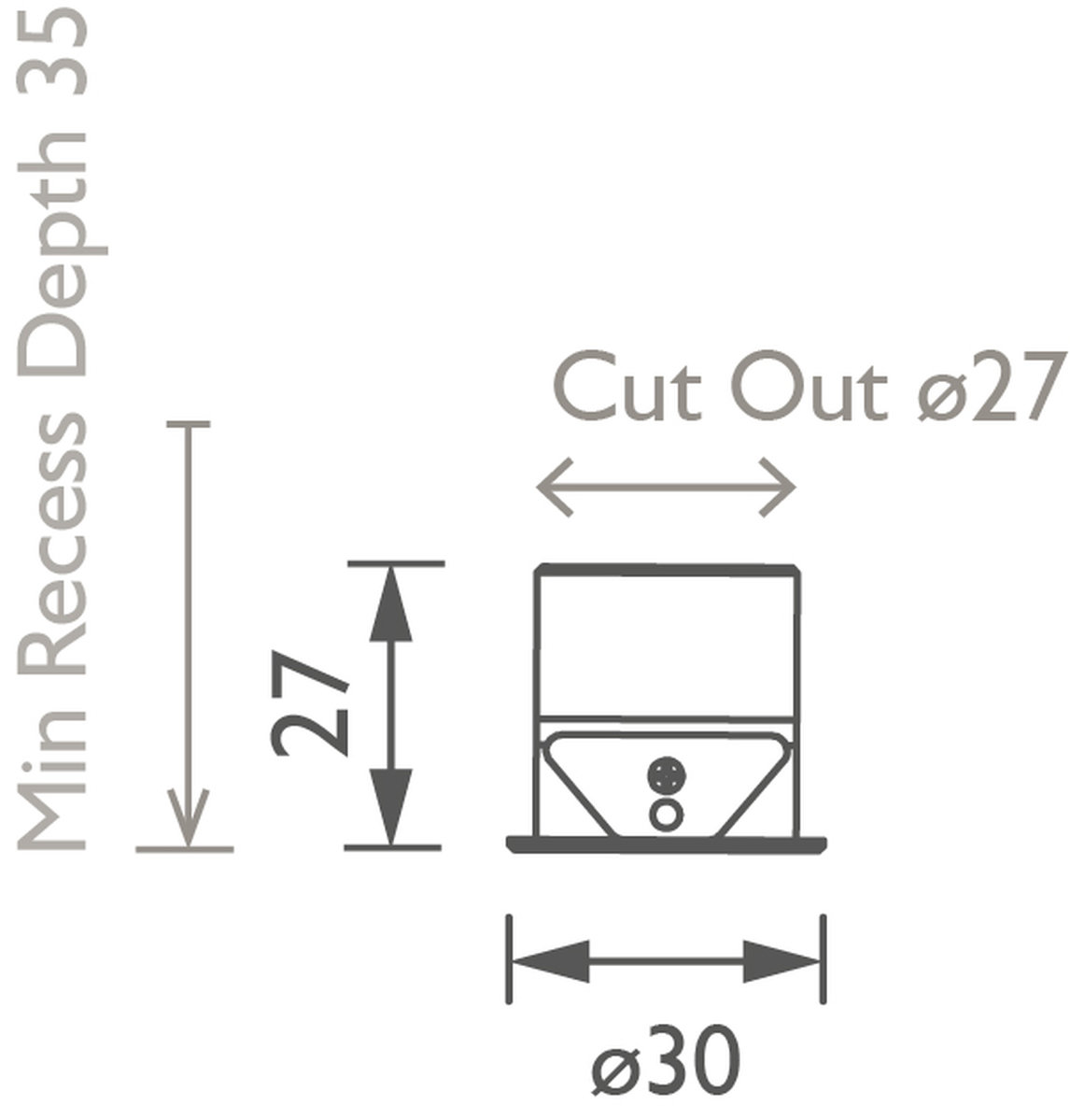

Drawings & Dimensions
Finishes
Black
Brass
Bronze Anodised
Stainless Steel
White RAL 9910
Accessories
Technical Download
Select your luminaire
ExpandCollapse Filters
Finish
All
Black Anodised
Brass
Bronze Anodised
Stainless Steel
White RAL 9910
Beam Angle
All
11°
20°
36°
Beam
All
Narrow
Medium
Wide
Lucca 30 Downlight Wide Stainless Steel 2024
+ Show- Hide Product Image
Stainless Steel
36°
Wide
Lucca 30 Downlight Wide Stainless Steel 2024
Lucca 30 Downlight Wide Bronze 2024
+ Show- Hide Product Image
Bronze Anodised
36°
Wide
Lucca 30 Downlight Wide Bronze 2024
Lucca 30 Downlight Wide Brass 2024
+ Show- Hide Product Image
Brass
36°
Wide
Lucca 30 Downlight Wide Brass 2024
Lucca 30 Downlight Wide Black 2024
+ Show- Hide Product Image
Black Anodised
36°
Wide
Lucca 30 Downlight Wide Black 2024
Lucca 30 Downlight Wide White 2024
+ Show- Hide Product Image
White RAL 9910
36°
Wide
Lucca 30 Downlight Wide White 2024
Lucca 30 Downlight Medium Stainless Steel 2024
+ Show- Hide Product Image
Stainless Steel
20°
Medium
Lucca 30 Downlight Medium Stainless Steel 2024
Lucca 30 Downlight Medium Bronze 2024
+ Show- Hide Product Image
Bronze Anodised
20°
Medium
Lucca 30 Downlight Medium Bronze 2024
Lucca 30 Downlight Medium Black 2024
+ Show- Hide Product Image
Black Anodised
20°
Medium
Lucca 30 Downlight Medium Black 2024
Lucca 30 Downlight Medium Brass 2024
+ Show- Hide Product Image
Brass
20°
Medium
Lucca 30 Downlight Medium Brass 2024
Lucca 30 Downlight Medium White 2024
+ Show- Hide Product Image
White RAL 9910
20°
Medium
Lucca 30 Downlight Medium White 2024
Lucca 30 Downlight Narrow Bronze 2024
+ Show- Hide Product Image
Bronze Anodised
11°
Narrow
Lucca 30 Downlight Narrow Bronze 2024
Lucca 30 Downlight Narrow Stainless Steel 2024
+ Show- Hide Product Image
Stainless Steel
11°
Narrow
Lucca 30 Downlight Narrow Stainless Steel 2024
Lucca 30 Downlight Narrow Brass 2024
+ Show- Hide Product Image
Brass
11°
Narrow
Lucca 30 Downlight Narrow Brass 2024
Lucca 30 Downlight Narrow White 2024
+ Show- Hide Product Image
White RAL 9910
11°
Narrow
Lucca 30 Downlight Narrow White 2024
Lucca 30 Downlight Narrow Black 2024
+ Show- Hide Product Image
Black Anodised
11°
Narrow
Lucca 30 Downlight Narrow Black 2024
