Application
Use where a miniature, discreet, low glare, downlight is required as part of a layered lighting scheme.
Polespring 30
Category
Downlights, Polespring 30
Finishes
Description

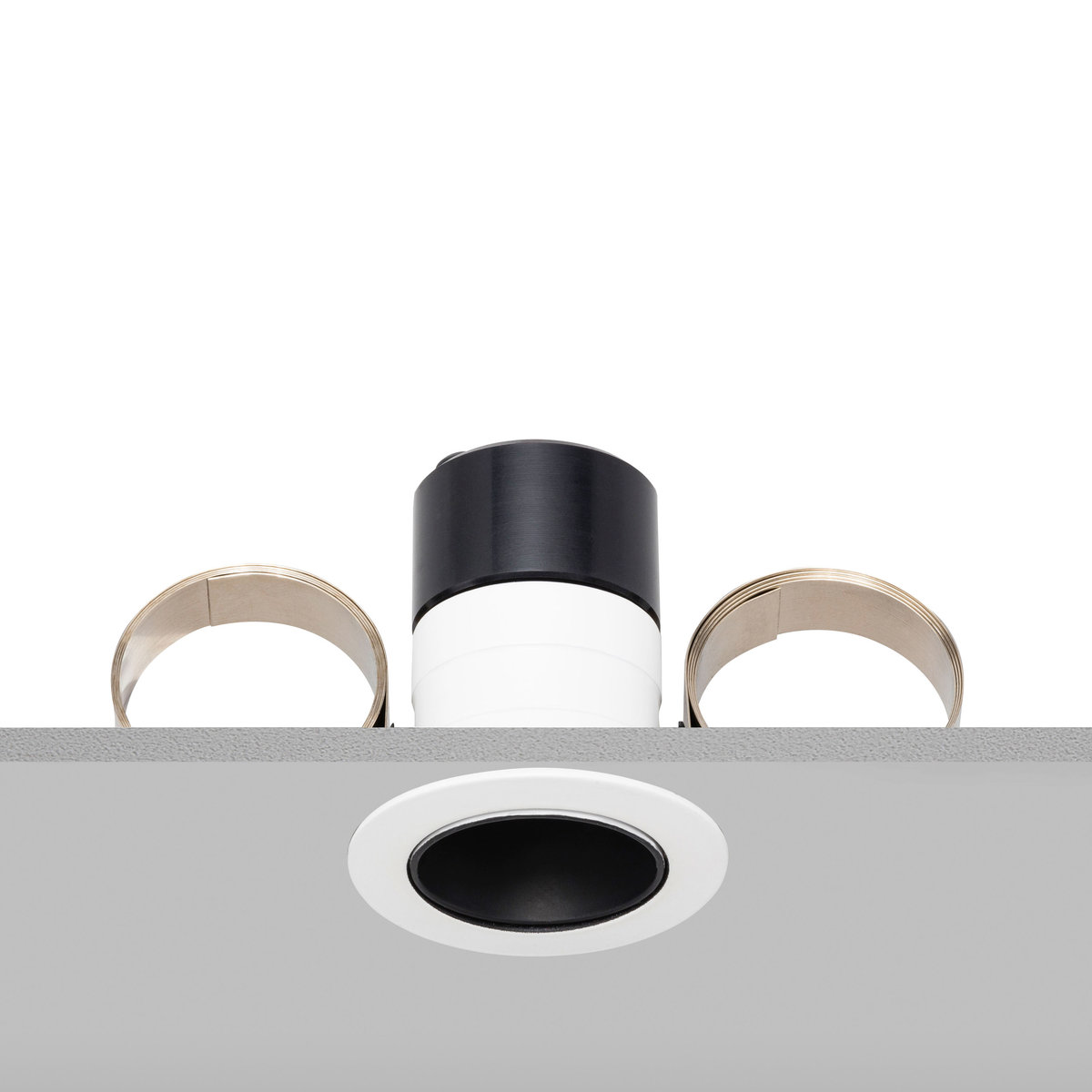

The Polespring 30 is a low glare miniature directional downlight suitable for both interior and marine applications. An extra deep black baffle and extra slim bezel allows for a low glare and minimal architectural lighting solutions. Available in trim and trimless, fixed and tilt to 30 degrees, making it one of the best architectural downlights. It is now IP54 as standard.
Commissioning and the changing of LED engines is made easier with the ability to interchangeable engines without the need for hand tools.
Tested by Lighting Industry Association (LIA) Laboratory
Intelligent Design
Often copied but never surpassed. Superior light output and quality whilst keeping glare to a minimum.
Technical Specifications
| Beam | Beam Angle | Source | Engine | Luminaire | Power | Supply | CCT | CRI | IP | Fire Rated | Dimmable |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Narrow | 11° | 172 | 156 | 146 | 2 | 700mA | 2700K | 98 Ra | IP54 | Yes | DALI/Phase cut/1-10V |
| Medium | 32° | 400 | 340 | 280 | 4 | 350mA | 2700K | >90 Ra | IP54 | Yes | DALI/Phase cut/1-10V |
| Wide | 46° | 400 | 320 | 240 | 4 | 350mA | 2700K | >90 Ra | IP54 | Yes | DALI/Phase cut/1-10V |

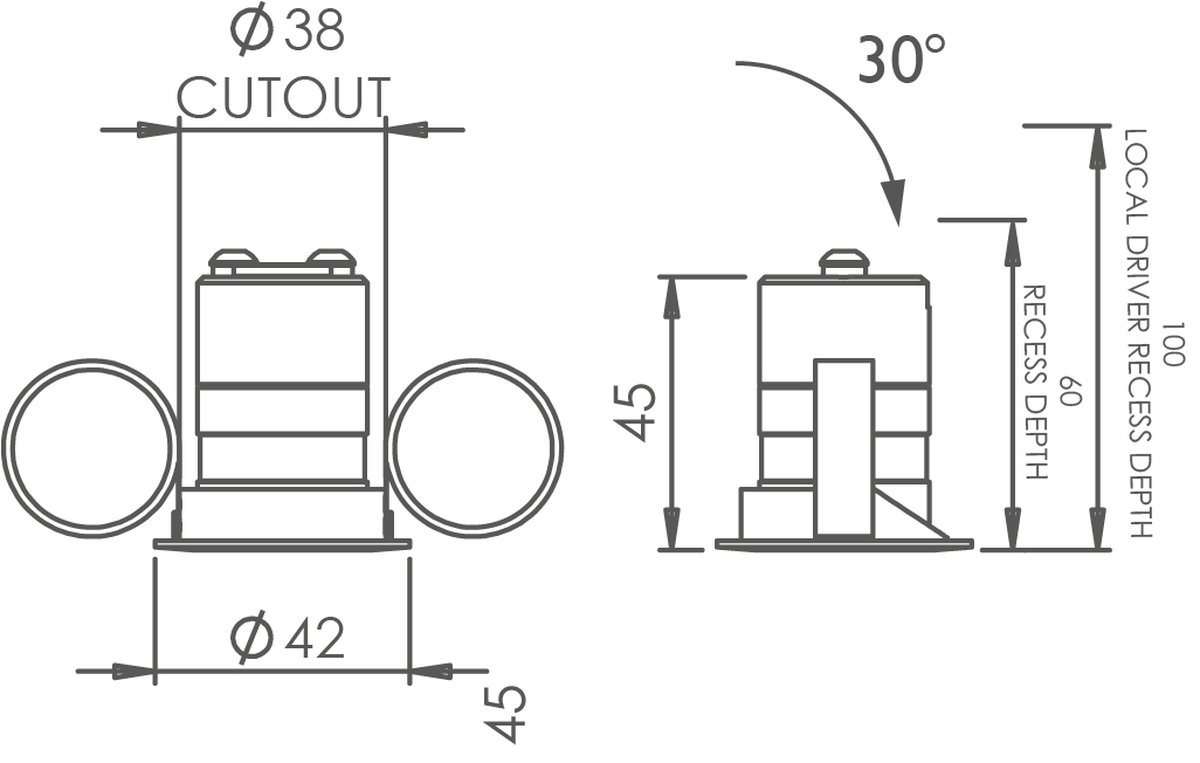

Drawings & Dimensions
Finishes
Black RAL 9005
White RAL 9003 Textured
Accessories
Technical Download
Select your luminaire
ExpandCollapse Filters
Beam Angle
All
11°
32°
46°
Beam
All
Narrow
Medium
Wide
Finish
All
Black RAL 9005
White RAL 9003 Textured
Polespring Pure 30 White Wide 2700K
+ Show- Hide Product Image
46°
Wide
White RAL 9003 Textured
Polespring Pure 30 White Wide 2700K
Polespring Pure 30 White Narrow 2700K
+ Show- Hide Product Image
11°
Narrow
White RAL 9003 Textured
Polespring Pure 30 White Narrow 2700K
Polespring Pure 30 White Medium 2700K
+ Show- Hide Product Image
32°
Medium
White RAL 9003 Textured
Polespring Pure 30 White Medium 2700K
Polespring Pure 30 Black Wide 2700K
+ Show- Hide Product Image
46°
Wide
Black RAL 9005
Polespring Pure 30 Black Wide 2700K
Polespring Pure 30 Black Narrow 2700K
+ Show- Hide Product Image
11°
Narrow
Black RAL 9005
Polespring Pure 30 Black Narrow 2700K
Polespring Pure 30 Black Medium 2700K
+ Show- Hide Product Image
32°
Medium
Black RAL 9005
Polespring Pure 30 Black Medium 2700K
