Application
Accessories & variable optics allow for the Square50 to achieve tight focus to features, or for broader washes of light, reflecting off vertical surfaces.
Square 50
Category
Downlights
Finishes
Description

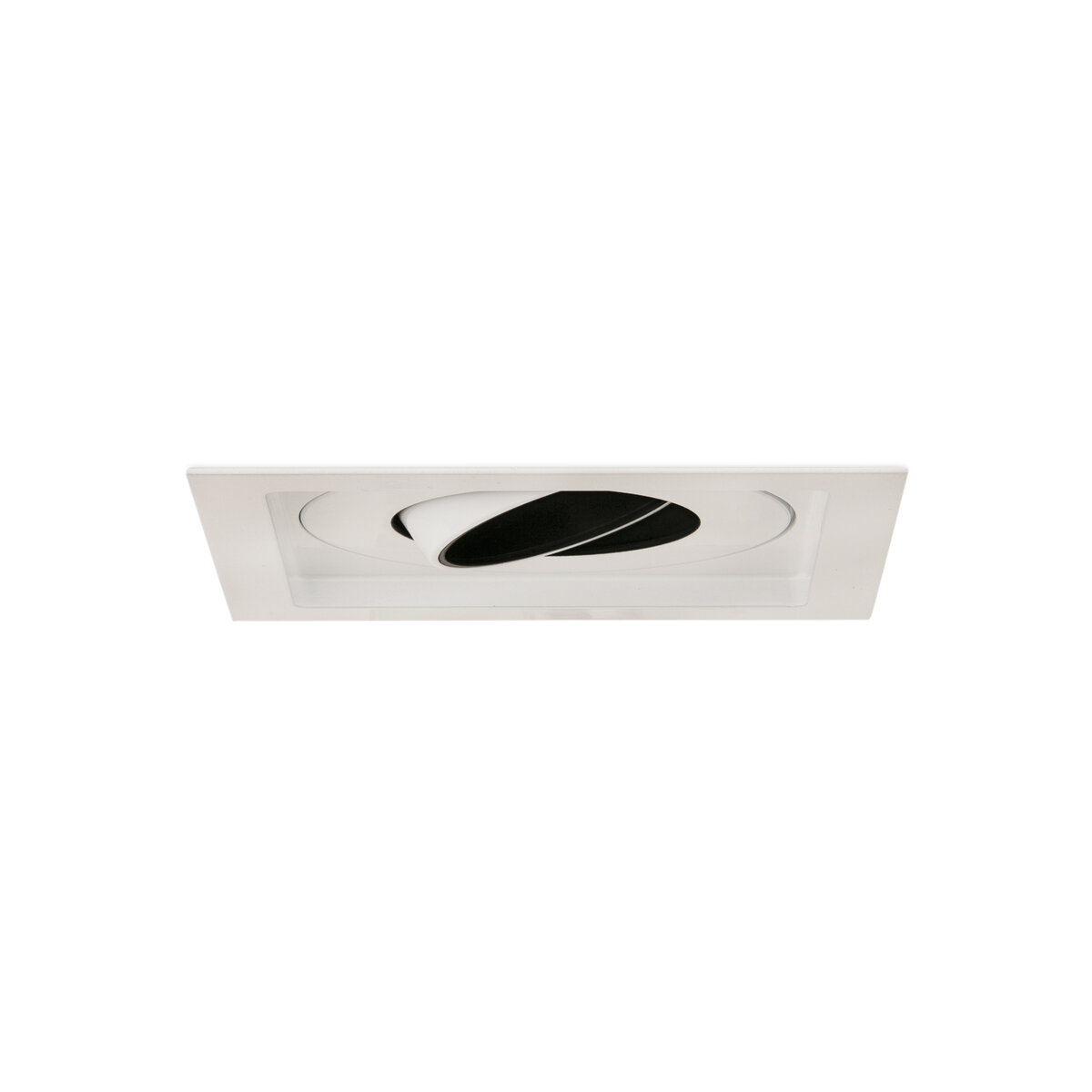

Our Square 50 LED downlight uses an extra slim-line bezel with a deep 25mm dual black baffle system to help reduce glare. The downlight is suitable for plasterboard ceilings and can tilt up to 35 degrees and rotate a full 360 degrees. It comes in trim and trimless versions.
The Square 50 now comes with three different LED engines: Pure 50, AmbiDim 50 and Tune 50. See the LED engines for full details. Technical details below for the Pure 50. The engine features a plug in LED driver for interchangeable components on site with no hand tools required.
Tested by Lighting Industry Association (LIA) Laboratory
Intelligent Design
Superior light output and quality whilst keeping glare to a minimum.
Technical Specifications
| Beam | Beam Angle | Source | Engine | Luminaire | Power | Supply | CCT | CRI | IP | Fire Rated | Dimmable |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Super Spot | 13° | 507 lm | 492 lm | 312 lm | 6.6W | 350mA | 2700K | 98 Ra | IP20 | Yes | DALI/Phase cut/1-10V |
| Spot | 16° | 998 lm | 987 lm | 710 lm | 12.8W | 350mA | 2700K | 98 Ra | IP20 | Yes | DALI/Phase cut/1-10V |
| Narrow | 22° | 1344 lm | 1164 lm | 747 lm | 12W | 350mA | 2700K | 98 Ra | IP20 | Yes | DALI/Phase cut/1-10V |
| Medium | 26° | 1344 lm | 1200 lm | 711 lm | 12W | 350mA | 2700K | 98 Ra | IP20 | Yes | DALI/Phase cut/1-10V |
| Wide | 34° | 1344 lm | 1111 lm | 661 lm | 12W | 350mA | 2700K | 98 Ra | IP20 | Yes | DALI/Phase cut/1-10V |
| Super Wide | 45° | 1344 lm | 1229 lm | 597 lm | 12W | 350mA | 2700K | 98 Ra | IP20 | Yes | DALI/Phase cut/1-10V |
Drawings & Dimensions
Finishes
Black RAL 9005
White RAL 9910
Accessories
Technical Download
Select your luminaire
ExpandCollapse Filters
Beam
All
Super Spot
Spot
Narrow
Medium
Wide
Super Wide
Beam Angle
All
13°
16°
22°
26°
34°
45°
Bezel
All
Trim
Trimless
Finish
All
Black RAL 9005
White RAL 9910
Square Trim Pure 50 Black SuperWide 2700K
+ Show- Hide Product Image
Super Wide
45°
Trim
Black RAL 9005
Square Trim Pure 50 Black SuperWide 2700K
Square Trim Pure 50 Black Wide 2700K
+ Show- Hide Product Image
Wide
34°
Trim
Black RAL 9005
Square Trim Pure 50 Black Wide 2700K
Square Trim Pure 50 Black Super Spot 2700K
+ Show- Hide Product Image
Super Spot
13°
Trim
Black RAL 9005
Square Trim Pure 50 Black Super Spot 2700K
Square Trim Pure 50 Black Spot 2700K
+ Show- Hide Product Image
Spot
16°
Trim
Black RAL 9005
Square Trim Pure 50 Black Spot 2700K
Square Trim Pure 50 Black Narrow 2700K
+ Show- Hide Product Image
Narrow
22°
Trim
Black RAL 9005
Square Trim Pure 50 Black Narrow 2700K
Square Trim Pure 50 Black Medium 2700K
+ Show- Hide Product Image
Medium
26°
Trim
Black RAL 9005
Square Trim Pure 50 Black Medium 2700K
Square Trim Pure 50 White Wide 2700K
+ Show- Hide Product Image
Wide
34°
Trim
White RAL 9910
Square Trim Pure 50 White Wide 2700K
Square Trim Pure 50 White Narrow 2700K
+ Show- Hide Product Image
Narrow
22°
Trim
White RAL 9910
Square Trim Pure 50 White Narrow 2700K
Square Trimless Pure 50 Black Super Spot 2700K
+ Show- Hide Product Image
Super Spot
13°
Trimless
Black RAL 9005
Square Trimless Pure 50 Black Super Spot 2700K
Square Trimless Pure 50 Black Spot 2700K
+ Show- Hide Product Image
Spot
16°
Trimless
Black RAL 9005
Square Trimless Pure 50 Black Spot 2700K
Square Trimless Pure 50 White Wide 2700K
+ Show- Hide Product Image
Wide
34°
Trimless
White RAL 9910
Square Trimless Pure 50 White Wide 2700K
Square Trimless Pure 50 White Narrow 2700K
+ Show- Hide Product Image
Narrow
22°
Trimless
White RAL 9910
Square Trimless Pure 50 White Narrow 2700K
Square Trimless Pure 50 Black Wide 2700K
+ Show- Hide Product Image
Wide
34°
Trimless
Black RAL 9005
Square Trimless Pure 50 Black Wide 2700K
Square Trimless Pure 50 Black Narrow 2700K
+ Show- Hide Product Image
Narrow
22°
Trimless
Black RAL 9005
Square Trimless Pure 50 Black Narrow 2700K
Square Trimless Pure 50 Black Super Wide 2700K
+ Show- Hide Product Image
Super Wide
45°
Trimless
Black RAL 9005
Square Trimless Pure 50 Black Super Wide 2700K
Square Trimless Pure 50 Black Medium 2700K
+ Show- Hide Product Image
Medium
26°
Trimless
Black RAL 9005
Square Trimless Pure 50 Black Medium 2700K
Square Trimless Pure 50 White Super Wide 2700K
+ Show- Hide Product Image
Super Wide
45°
Trimless
White RAL 9910
Square Trimless Pure 50 White Super Wide 2700K
Square Trimless Pure 50 White Medium 2700K
+ Show- Hide Product Image
Medium
26°
Trimless
White RAL 9910
Square Trimless Pure 50 White Medium 2700K
Square Trimless Pure 50 White Spot 2700K
+ Show- Hide Product Image
Spot
16°
Trimless
White RAL 9910
Square Trimless Pure 50 White Spot 2700K
Square Trimless Pure 50 White Super Spot 2700K
+ Show- Hide Product Image
Super Spot
13°
Trimless
White RAL 9910
Square Trimless Pure 50 White Super Spot 2700K
Square Trim Pure 50 White Super Wide 2700K
+ Show- Hide Product Image
Super Wide
45°
Trim
White RAL 9910
Square Trim Pure 50 White Super Wide 2700K
Square Trim Pure 50 White Medium 2700K
+ Show- Hide Product Image
Medium
26°
Trim
White RAL 9910
Square Trim Pure 50 White Medium 2700K
Square Trim Pure 50 White Spot 2700K
+ Show- Hide Product Image
Spot
16°
Trim
White RAL 9910
Square Trim Pure 50 White Spot 2700K
Square Trim Pure 50 White Super Spot 2700K
+ Show- Hide Product Image
Super Spot
13°
Trim
White RAL 9910
Square Trim Pure 50 White Super Spot 2700K
