Application
THE PORT SERIES CREATES THE ULTIMATE FLEXIBLE SCHEME WHERE PLASTER-IN BASES CAN BE POSITIONED IN LOCATIONS WHERE LIGHT MAY BE NEEDED AND LEFT CONCEALED IF NOT REQUIRED.
Vorsa Port 40 2024
Category
Spotlights, Surface Mounted, Vorsa Fix
Finishes
Description
The new Vorsa Port 40 spotlight has been re-imagined as a simplified mini plaster-in spotlight. It has been re-engineered for 2024 with a cleaner aesthetic, an increased light output and an industry-leading light output at 98 CRI. Interchangeable optics allow for a range of beam distributions, all easy to fit on-site. We have introduced a new innovative screwless self-supporting tilt mechanism. It comes complete with recyclable cardboard protection shield for first fix installation. The range has been built to the principles of the circular economy to not only maximise resources but also to reduce waste and environmental impact.
Tested by Lighting Industry Association (LIA) Laboratory
Intelligent Design
SUPERIOR LIGHT OUPUT AND QUALITY WHILST KEEPING GLARE TO A MINIMUM.
Technical Specifications
| Beam | Beam Angle | Source | Engine | Luminaire | Power | Supply | CCT | CRI | IP | Fire Rated | Dimmable |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Narrow | 11° | 680 | N/A | 370 | 9 | Constant Current | 2700K | 98 Ra | IP20 | N/A | DALI/Phase cut/0-10V |
| Medium | 23° | 680 | N/A | 440 | 9 | Constant Current | 2700K | 98 Ra | IP20 | N/A | DALI/Phase cut/0-10V |
| Wide | 33° | 680 | N/A | 480 | 9 | Constant Current | 2700K | 98 Ra | IP20 | N/A | DALI/Phase cut/0-10V |
| Super Wide | 53° | 680 | N/A | 470 | 9 | Constant Current | 2700K | 98 Ra | IP20 | N/A | DALI/Phase cut/0-10V |

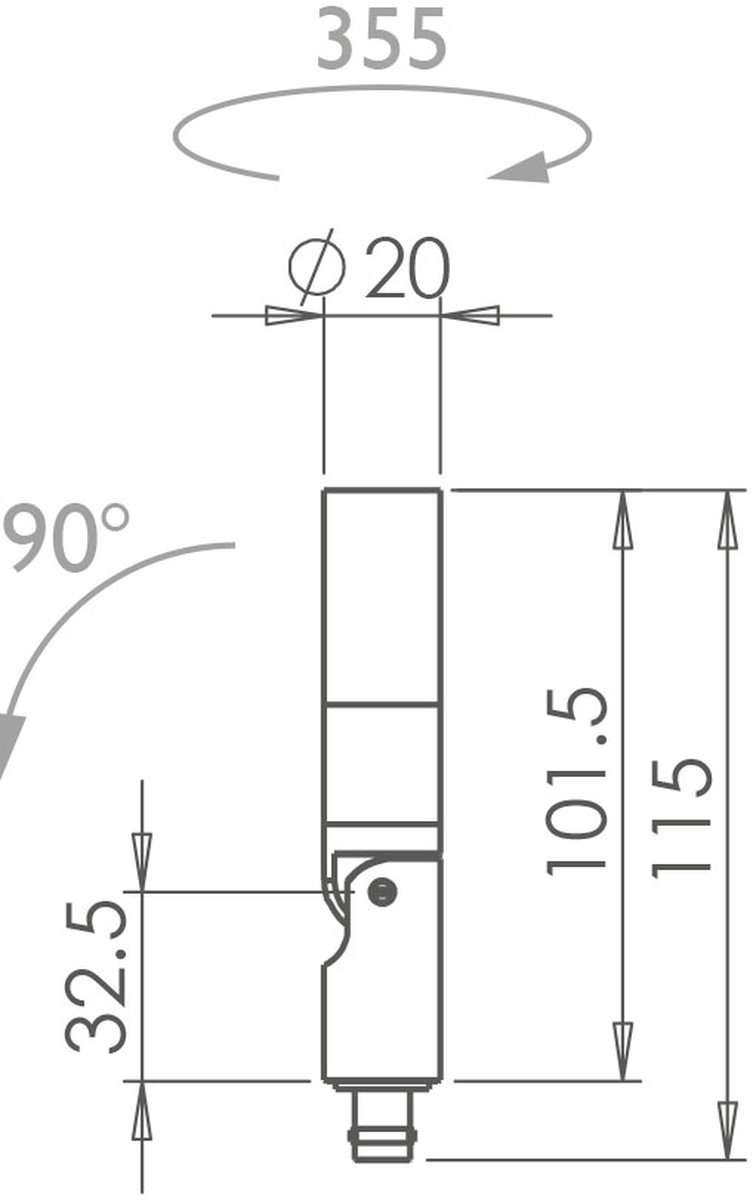

Drawings & Dimensions
Finishes
Black RAL 9005
White RAL 9003
Accessories
Technical Download
Select your luminaire
ExpandCollapse Filters
Beam Angle
All
9°
11°
23°
33°
53°
Beam
All
Spot
Narrow
Medium
Wide
Super Wide
Finish
All
Black RAL 9005
White RAL 9003
Vorsa Port 40 Spot White 2024
+ Show- Hide Product Image
9°
Spot
White RAL 9003
Vorsa Port 40 Spot White 2024
Vorsa Port 40 Narrow White 2024
+ Show- Hide Product Image
11°
Narrow
White RAL 9003
Vorsa Port 40 Narrow White 2024
Vorsa Port 40 Super Wide Black 2024
+ Show- Hide Product Image
53°
Super Wide
Black RAL 9005
Vorsa Port 40 Super Wide Black 2024
Vorsa Port 40 Super Wide White 2024
+ Show- Hide Product Image
53°
Super Wide
White RAL 9003
Vorsa Port 40 Super Wide White 2024
Vorsa Port 40 Wide Black 2024
+ Show- Hide Product Image
33°
Wide
Black RAL 9005
Vorsa Port 40 Wide Black 2024
Vorsa Port 40 Medium Black 2024
+ Show- Hide Product Image
23°
Medium
Black RAL 9005
Vorsa Port 40 Medium Black 2024
Vorsa Port 40 Wide White 2024
+ Show- Hide Product Image
33°
Wide
White RAL 9003
Vorsa Port 40 Wide White 2024
Vorsa Port 40 Medium White 2024
+ Show- Hide Product Image
23°
Medium
White RAL 9003
Vorsa Port 40 Medium White 2024
Vorsa Port 40 Narrow Black 2024
+ Show- Hide Product Image
11°
Narrow
Black RAL 9005
Vorsa Port 40 Narrow Black 2024
